Custom PCB Assembly Manufacturing Aluminum Plate Blind Hole Plate

Brand Name : CUSTOM MADE

Certification : ISO/UL

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T

Supply Ability : 100000pc/Month

Delivery Time : 4 Weeks

Packaging Details : PCB+ Box

Name : PCB Manufacturing

Materials : High-Tg FR4,Rogers, Nelco,RCC

Application : Medical Care,Electronics Device,Communications

Assembly Type : Consignment Assembly,Quick turn to prototype pcb assembly,turnkey assembly

Max Aspect Ratio : 20:01

PCB Board : multi-layer boards,Blind-hole Boards,Normal Boards,FPC Boards

Whether to Support customization : Support

Min Width/Space : 2.4/2.4mil

Logistics : Accept customer specified logistics

Thickness : 0.3-6.5mm

Payment Method : T/T

Contact Now

Assemblability PCB Manufacturing Aluminum Plate Blind Hole Plate

PCB Manufacturing Introduce:
PCB and PCBA, as important components in the electronics industry, play a key role in electrical interconnection and circuit support. It is widely used in industrial control, communication modules, medical, automotive electronics, security equipment, and other industries. PCB printed circuit board provides the fixing and electrical connection of electronic components, while PCBA, as the processing process of the printed circuit board, completes the assembly and welding of components.

PCB Manufacturing Parameters:

Item Technical Parameter
Layer 2-64
Thickness 0.3-6.5mm
Copper Thickness 0.3-12 oz
Min Mechanical Hole 0.1mm
Min Laser Hole 0.075mm
HDI 1+n+1,2+n+2,3+n+3
Max Aspect Ratio 20:01
Max Board Size 650mm*1130mm
Min Width/Space 2.4/2.4mil
Min Outline Tolerance ±0.1mm
Impedance Tolerance ±5%
Min PP Thickness 0.06mm
Bow &Twist ≤0.5%
Materials FR4, High-Tg FR4, Rogers, Nelco, RCC, PTFE, M4, M6, TU862, TU872
Surface Finished HASL, HASL Pb Free Immersion Gold/Tin/Silver Osp, Immersion Gold+OSP
Special Capability Gold Finger Plating, Peelable, Carbon ink

PCB Manufacturing FAQ:
Q1: What are the payment terms we can accept?
A1: We recommend that you use T/T, and other needs can be communicated with our staff.

Q2: What are the benefits of choosing us?
A2: Save time, Tongzhan is fully aware of the market pressure of customers. We work according to the client's time. Because we're able to handle everything under one roof in one streamlined process, you get the benefits of working with one company and one timeline. Turnkey Solutions, Co-exhibition provides turnkey services including PCB layout, PCB fabrication, and assembly. This can help you save administrative time.

Custom PCB Assembly Manufacturing Aluminum Plate Blind Hole Plate


Product Tags:

Custom PCB Assembly Manufacturing



Aluminum Plate PCB Assembly Manufacturing



Blind Hole PCB Assembly Manufacturing


Quality Custom PCB Assembly Manufacturing Aluminum Plate Blind Hole Plate wholesale

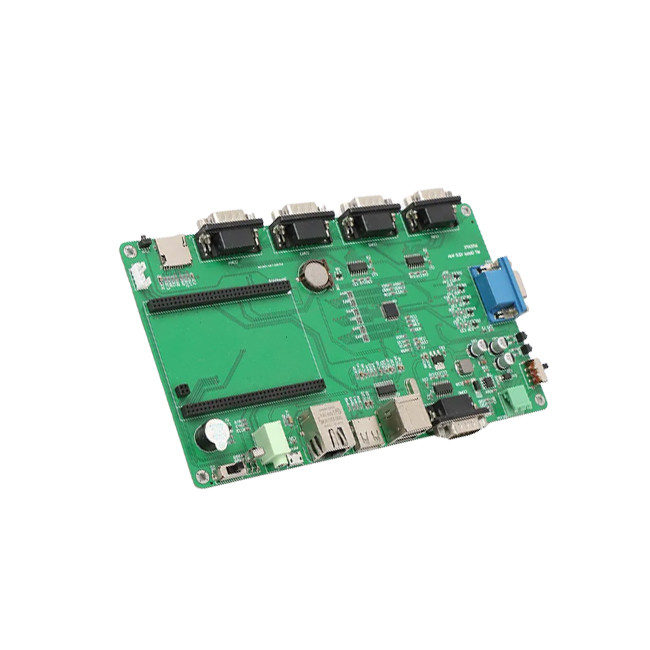

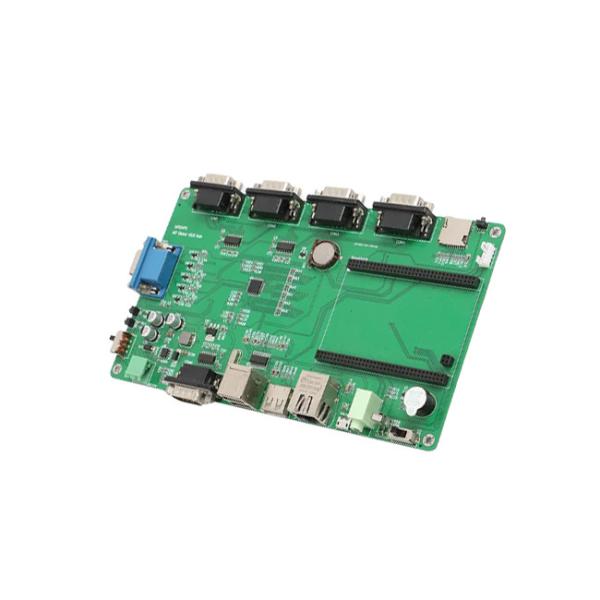

Custom PCB Assembly Manufacturing Aluminum Plate Blind Hole Plate Images
