Place of Origin : China
MOQ : Negotiable
Price : Negotiable
Supply Ability : 100000pc/Month
Delivery Time : 4 Weeks
Packaging Details : PCB+ Box
Brand Name : CUSTOM MADE
Certification : ISO/UL
Keyword : Electronic Component Sourcing
Application : Automotive Electronics, Internet Electronic Watches
Copper Thickness : 0.3-12 oz
PCB boards : Flexible boards, Rigid-flex boards, Multi-layer boards
Surface Finished : Immersion Gold+OSP, HASL Pb Free Immersion Gold Osp
layer : 2-64 layers
Special Capability : Carbon ink, Gold Finger Plating
Materials : Rogers, PTFE, High-Tg FR4, FR4
Payment Method : T/T
Whether to Support customization : Support
Logistics : Accept customer specified logistics
Multi-Layer PCB Electronic Component Sourcing Peelable HDI Board
Electronic Component Sourcing Description:
1. A team of experts with more than 10 years of experience.
2. Professional component certified engineers and experienced supply chain management team.
3. Pay attention to the latest international market information and provide competitive prices.
4. Certified suppliers and parts.
PCB Manufacturing Parameters:
Item | Technical Parameter |
Layer | 2-64 |
Thickness | 0.3-6.5mm |
Copper Thickness | 0.3-12 oz |
Min Mechanical Hole | 0.1mm |
Min Laser Hole | 0.075mm |
HDI | 1+n+1,2+n+2,3+n+3 |
Max Aspect Ratio | 20:01 |
Max Board Size | 650mm*1130mm |
Min Width/Space | 2.4/2.4mil |
Min Outline Tolerance | ±0.1mm |
Impedance Tolerance | ±5% |
Min PP Thickness | 0.06mm |
Bow &Twist | ≤0.5% |
Materials | FR4, High-Tg FR4, Rogers, Nelco, RCC, PTFE, M4, M6, TU862, TU872 |
Surface Finished | HASL, HASL Pb Free Immersion Gold/Tin/Silver Osp, Immersion Gold+OSP |
Special Capability | Gold Finger Plating, Peelable, Carbon ink |
FAQ:
Q: Do you have MOQ restrictions?
We do not have any limit on order quantity and can support samples and mass production. The specific situation depends on the needs of customers and can be communicated with the staff.
Q. What service can you supply?
TongZhan was founded in 2011 and is committed to being a leading one-stop EMS provider. We specialize in high-speed turn-key PCB services: PCB design, Fabrication, Components sourcing, PCBA, and Supply Chain service.
Electronic Component Sourcing Introduction:
The earliest use of printed circuit boards is paper-based copper-clad printed boards. Since the advent of semiconductor transistors in the 1950s, the demand for printed boards has risen sharply. Especially with the rapid development and wide application of integrated circuits, the volume of electronic equipment is getting smaller and smaller, and the circuit wiring density and difficulty are getting bigger and bigger, which requires the printed board to be updated continuously. At present, the variety of printed boards has developed from single-sided to double-sided, multi-layer boards and flexible boards; the structure and quality have also developed to ultra-high density, miniaturization, and high reliability.
![]() |

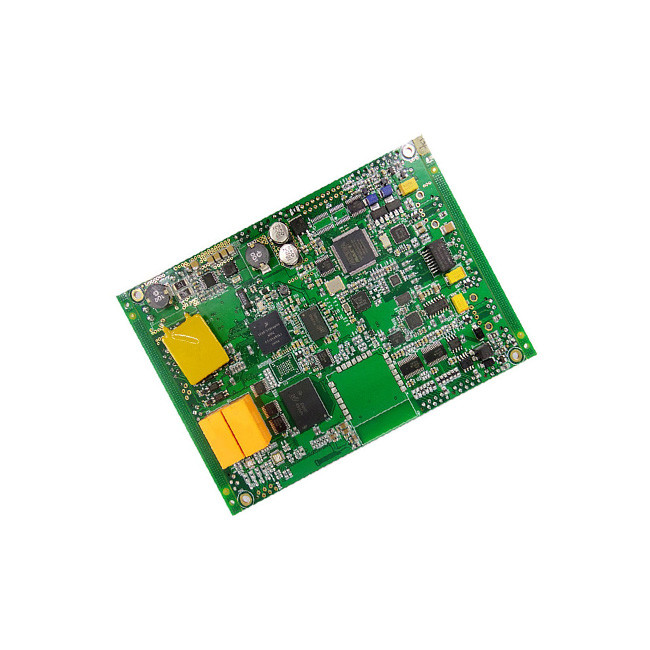

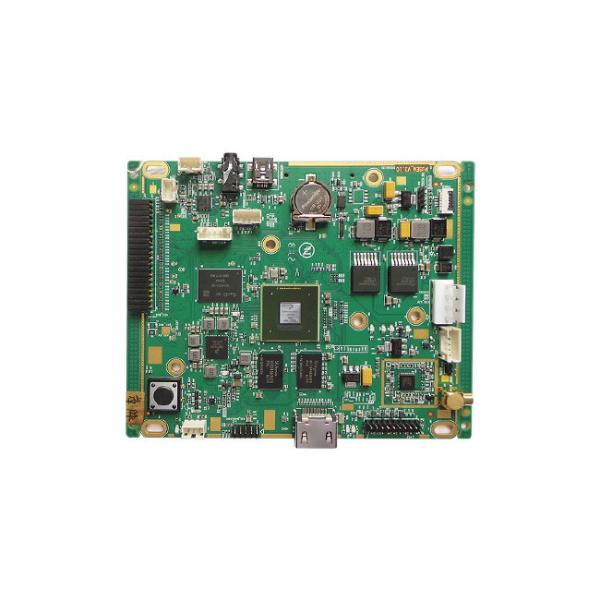

PCB Electronic Components Procurement HDI Board Images |
